| Manufacturer | SilencerCo |
|---|---|
| Weight | 3.5000 |
| Length | 2.5 |
| Compatibility | SilencerCo Chimera 300, SilencerCo Harvester 300, SilencerCo Harvester 338, SilencerCo Hybrid 46, SilencerCo Omega 300, SilencerCo Saker ASR, SilencerCo Specwar 556k/556, SilencerCo Specwar 762 |
| Model | No |
| Manufacturer's Suggested Retail Price | $92.00 |

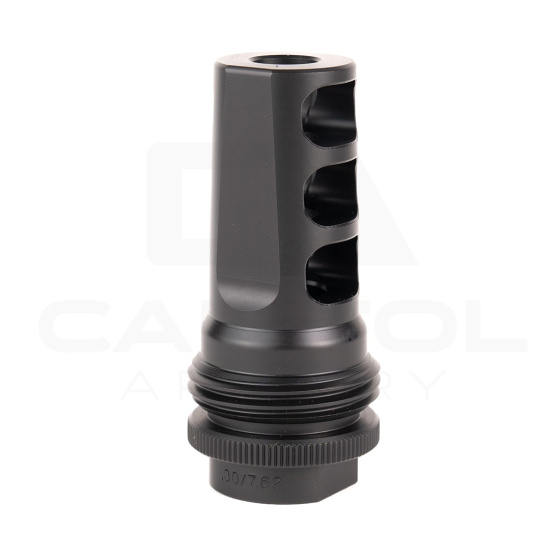

SILENCERCO ASR MUZZLE BRAKE
The SilencerCo ASR muzzle brake is compatible with the SilencerCo ASR mounting system. The ASR mounting system comes standard on the Omega 300, Omega 36M, Chimera 300, Saker ASR and Specwar family of suppressors. It is an optional accessory for the Hybrid 46, Saker (discontinued) and Harvester 338 suppressors. It offers one hand on, one hand off attachment/detachment and the 3-port design effectively reduces felt recoil and muzzle climb.
- Alpha ASR Mount
(Octane 45, Octane 45K, Octane 9, Omega 9K, Omega 45K, Harvester 300, Obsidian 9, Obsidian 45) - Bravo ASR Mount
(Omega 300, Hybrid 46, Harvester 338, EA Vox S, EA Vox K, Dead Air Nomad, EA Lux) - Charlie ASR Mount
(SilencerCo Saker (Legacy), Omega 36M, Saker ASR 556, Saker ASR 556K, Saker ASR 762, Chimera) - Integrated ASR Mount
(Specwar 762, Specwar 556, Specwar 556K)
- Shim set
| AC591 | 5/8X24 | 7.62 |
| AC142 | 1/2X28 | 5.56 |
| AC1282 | 1/2X28 | 7.62 |
| AC1276 | 9/16X24RH | 7.62 |
| AC857 | 5/8x24 | 338 |
| AC858 | 3/4x24 | 338 |
| AC856 | M18x1 | 338 |
| AC855 | M18x1.5 | 338 |
| AC1733 | 5/8x24 | 46 |
| AC1557 | 5/8x32 | 46 |
| AC1961 | 11/16x24 | 46 |
VIDEOS
-
I intend to pin this brake on a 14.5" barrel. Will I have the clearance for a 15" rail?
You will not have clearance. You'll need another .25" or so to get full clearance from the rail to attach a suppressor.
-
What is the overall length of this? Trying to pin and weld to 14" barrel.
2 3/8" long. Keep in mind that if your barrel is 14", the threads will consume at least .5" of the length giving you an overall length of 15 7/8" . If your barrel is 14.5", your OAL will be 16 3/8" long.
