YHM RESONATOR K SUPPRESSOR - COMPACT FULL-AUTO RATED .30 CALIBER SILENCER, .17 HMR THROUGH 300 RUM

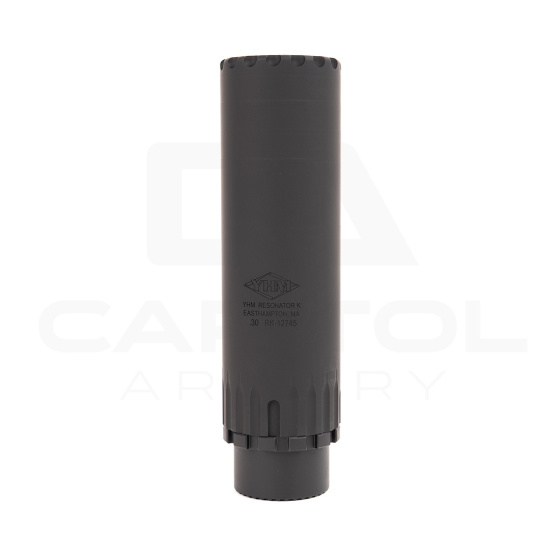

The YHM Resonator K is a compact .30 caliber suppressor that YHM describes as quiet, lightweight, and cost-effective, rated for rifle calibers from .17 HMR through 300 RUM. It measures 4.8" long (5.65" with the Phantom QD adapter), weighs 9.6 oz (12.4 oz with the Phantom QD adapter), and has a 1.562" diameter. The Resonator K uses a tubeless design in heat-treated 17-4 PH stainless steel with a Cobalt 6 blast baffle, wears a black Cerakote finish, and is full-auto rated. Its end cap design also reduces flash signature. YHM rates it at 137 dB at the ear and 145 dB at the muzzle on .308 Win. The model number is YHM-2150.
YHM names 5.56 NATO, 6.8 SPC, 7.62x39, 300 Blackout, 7.62x51 / .308 Winchester, .300 Win Mag, and 300 RUM among the cartridges the Resonator K can handle. Minimum barrel lengths run from 7.5" for 300 Blackout to 10" for 5.56 NATO, 6.8 SPC, and 7.62x39, 10.5" for 7.62x51 / .308 Winchester, and 20" for .300 Win Mag and 300 RUM. YHM notes that compact suppressors like the Resonator K may be preferable for hunting, while the full-size YHM Resonator R2 suits shooters who prioritize maximum sound reduction.
The blast chamber is threaded HUB (1.375x24), and the Resonator K ships quick-detach ready with the YHM Phantom QD adapter, a 5/8x24 Phantom QD muzzle device, and two suppressor wrenches. The HUB thread also opens up the YHM direct thread adapter, YHM sRx QD adapter, YHM Kurz QD adapter, and other HUB-compatible mounts.
CAPITOL ARMORY'S OPINION
Sometimes overall length matters more than squeezing out every last decibel, and that's exactly the job the Resonator K was built for. Think hunting with a short-barreled rifle, a truck gun that needs to stay handy, competition, or anywhere you're working in tight spaces. At under five inches, it adds very little to the end of your barrel, so a short host stays short and balanced, which is kind of the whole point of building short in the first place.
Being a K-size can, it won't be as quiet as a full-length .30 cal, and we'd rather be upfront about that. If sound reduction is your top priority, the full-size Resonator R2 is the better pick. The two also pair well together if you want to swap between a compact and full-length option on the same host.
The HUB thread is a big part of the appeal for us. If you already own HUB-compatible muzzle devices, you can run the Resonator K without buying new hardware, and you're not locked into one manufacturer's mounting system. Throw in the full-auto rating and the fact that it ships QD-ready out of the box, and for what you get, the price is hard to beat.
FEATURES
- Length: 4.8" (5.65" with Phantom QD adapter)
- Weight: 9.6 oz (12.4 oz with Phantom QD adapter)
- Mount: HUB (1.375x24), ships with Phantom QD adapter and 5/8x24 Phantom QD muzzle device
- Caliber rating: .17 HMR through 300 RUM
- Full-auto rated
- Color: Black Cerakote finish
- Diameter: 1.562"
- Tubeless design in heat-treated 17-4 PH stainless steel with Cobalt 6 blast baffle
- End cap design reduces flash signature
- Rated at 137 dB at the ear on .308 Win by YHM
- Model: YHM-2150
WHAT'S INCLUDED
- YHM Resonator K suppressor
- Phantom QD adapter
- 5/8x24 Phantom QD muzzle device
- Two suppressor wrenches
COMPATIBILITY
- Compatible Mounts: YHM Phantom QD adapter, YHM direct thread adapter, YHM sRx QD adapter, YHM Kurz QD adapter, any HUB-compatible mount
- Compatible Muzzle Devices: YHM Phantom QD muzzle brake, YHM Phantom 5.56 QD flash hider, YHM Mini Phantom QD muzzle brake, YHM sRx muzzle brake, YHM sRx flash hider
MEDIA
BARREL RESTRICTIONS
- 7.5" : 300 Blackout
- 10" : 5.56 NATO, 6.8 SPC, 7.62x39
- 10.5" : 7.62x51 / .308 Winchester
- 20" : .300 Win Mag, 300 RUM
SOUND PERFORMANCE
- 5.56mm: 150 dB at the ear / 153 dB at the muzzle (YHM)
- .300 BLK: 142 dB at the ear / 147 dB at the muzzle (YHM)
- .308 Win: 137 dB at the ear / 145 dB at the muzzle (YHM)
| Part Number | YHM-2150 |
|---|---|
| Weight | 9.6oz |
| Manufacturer | YHM |
| Caliber | 7.62mm |
| Length | 4.8 |
| Diameter | 1.56" |
| Decibel Reduction / Output | 137 dB / 144 dB (Ear/Muzzle) *Tested on 20” Remington 700, .308 Win |
| Full Auto Rated | Yes |
| Mount | HUB/Bravo - 1.375x24 |
| Thread Pitch | Multiple Thread Pitchs Available |
| Color | Black |
| Materials | Cobalt 6, 17-4 Stainless Steel |
| Can Be Disassembled | No |
| Warranty | Lifetime |
