USED CGS HELIOS QD SUPPRESSOR

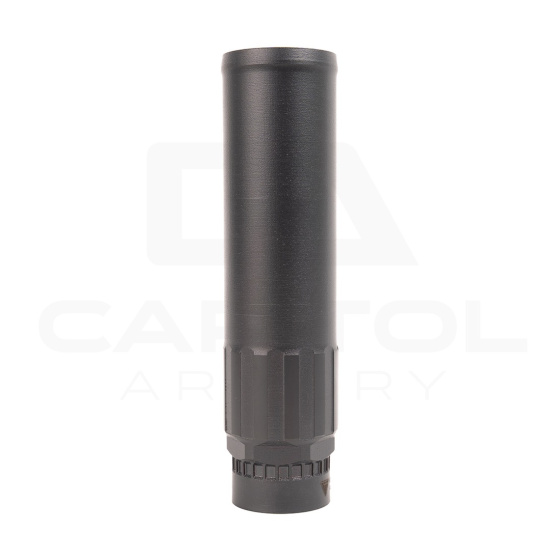

The CGS Helios QD is a 3D printed 718 Inconel rifle suppressor optimized for 5.56mm rifles and carbines. It has a .36 bore to reduce backpressure and allow use with 7.62 caliber projectiles, and it is rated up to 300 Norma Magnum. CGS's Varying Core Diameter design reduces sound and flash while keeping point of impact shift minimal, and the taper interface between the suppressor and muzzle device prevents carbon lock. It is full auto rated with no barrel length restrictions. The rear uses a HUB/Bravo (1.375x24) interface. This kit includes two direct thread mounts, a compatibility ring for third-party Bravo mounts, and two front caps. The flow-through front cap reduces backpressure further.
USED CONDITION
This suppressor has minor handling marks, a little burnt plastic residue on the DLC finish, and minor carbon fouling. The round count is estimated at under a few hundred rounds. Images are not of this specific suppressor and may be generic images.
WHAT'S INCLUDED
- CGS Helios QD suppressor
- Standard front cap (solid)
- Flow-through front cap (vented)
- 1/2x28 direct thread mount
- 5/8x24 direct thread mount
- HUB/Bravo compatibility ring
- Manual
- Case
MAY BE REQUIRED
- The included mounts fit 1/2x28 and 5/8x24 muzzle threads. Quick detach use or other thread pitches require a separate HUB/Bravo (1.375x24) mount, such as the SilencerCo Bravo ASR, Dead Air Key-Mo, or YHM Phantom QD Adapter, sold separately.
SPECIFICATIONS
- Caliber: 5.56mm (rated up to 300 Norma Magnum)
- Bore: .36
- Length: 6.5"
- Diameter: 1.75"
- Weight: 1 lb 3 oz
- Materials: 718 Inconel / 17-4 Stainless
- Construction: 3D printed (DMLS)
- Color: Black
- Mount Interface: HUB/Bravo (1.375x24)
- Included Mount Thread Pitches: 1/2x28, 5/8x24
- Full Auto Rated: Yes
- Barrel Length Restrictions: None
- Can Be Disassembled: No
| Weight | 1lb 3oz |
|---|---|
| Manufacturer | CGS |
| Caliber | 5.56mm |
| Length | 6.5 |
| Diameter | 1.75" |
| Decibel Reduction / Output | Not Provided |
| Full Auto Rated | Yes |
| Mount | HUB/Bravo - 1.375x24 |
| Thread Pitch | 1/2x28 |
| Color | Black |
| Materials | 718 INCONEL / 17-4 STAINLESS |
| Can Be Disassembled | No |
| Warranty | Lifetime. |
