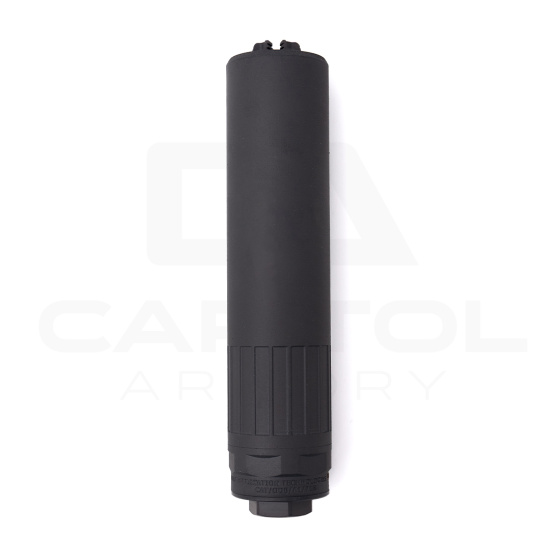

CAT ODB SUPPRESSOR - 7.62X39 AK-47 SILENCER, TITANIUM OR INCONEL 718, HUB OR QD
The CAT ODB (Old Dirty Bastard) is a 30 caliber rifle suppressor from CAT, optimized for 7.62x39 on the AK-47 and also rated for 5.56 NATO and .300 BLK, with a maximum caliber of 7.62 NATO. It's built around CAT's Surge Bypass technology and offered in titanium or Inconel 718, both with a DLC finish and a 1.60" diameter. HUB versions measure 6.85" long, while QD versions measure 6.85" plus mount for a 7.20" overall length. The titanium ODB weighs 9.9 oz in HUB form and 10.8 oz in QD form, and the Inconel 718 ODB weighs 18.2 oz (HUB) and 19.7 oz (QD).
CAT designed the ODB for subsonic and supersonic 5.56mm and 7.62x39mm, which share similar velocity and pressure characteristics, with the goal of consistent suppression, reduced backpressure, and reliable function across those platforms. Its optimized platform is a 16" AK-47, and its optimized velocity range is 1,100 to 2,600 ft/s. That makes the ODB a fit for AK-pattern rifles, 5.56 and .300 BLK AR-15s, and AR-10s chambered in 7.62 NATO, which the ODB supports with effective sound and flash mitigation under slightly higher pressures. While the bore will pass calibers like 6.5 Creedmoor and .300 Win Mag, the ODB isn't optimized for them and may be inferior in suppression efficiency, backpressure management, and structural integrity.
Choosing between materials comes down to weight versus hard use. The titanium ODB is the lightweight option, and it's better suited to low rates of fire, except in life-threatening self-defense situations. Titanium versions may also show excessive white sparking on first use, caused by microscopic titanium dust from the additive manufacturing process. This subsides over time but never fully disappears, particularly on short barrels, and it can't be controlled by a flash hider. The Inconel 718 ODB is CAT's duty-focused version, able to support high rates of fire, and it runs on shorter barrels in 5.56 NATO and 7.62 NATO than the titanium version. Inconel 718 also doesn't spark, which CAT recommends for anyone who wants to avoid it. Both materials use a dedicated waffle-style erosion interface at the end of the blast chamber, a sacrificial wall designed to take erosion from unburnt particulates and protect the rest of the suppressor's internals.
HUB versions ship without a mount, so you'll pair them with any HUB-compatible mount, or with CAT's TSFX QD mount (sold separately) to run on CAT 1x16LH QD muzzle devices. QD versions ship with a Spooky 1 flash hider and also work with the CAT-compatible Noveske Pig Pen. PEW Science tested the Inconel 718 ODB and recorded a composite Suppression Rating of 36.7 on 5.56 NATO and 67.2 on subsonic .300 BLK. Shooters whose main host is a .308 rifle can also look at the CAT JL, and our CAT Suppressor Buying Guide compares every model in the lineup.
CAPITOL ARMORY'S OPINION
If you've got an AK and want a can that was actually built around it, the ODB should be near the top of your list. CAT tuned it specifically for 7.62x39 on a 16" AK-47, and it keeps the overall package short at under 7" on the HUB versions. That matters on a rifle that's already front heavy.
The ODB also isn't a one-trick can. It's rated for 5.56, .300 BLK, and up to 7.62 NATO, so one suppressor can cover your AK, a .300 BLK AR-15, and even an AR-10 if you don't need it optimized for that platform. The HUB mount helps here too, since you can set up each rifle with whatever HUB-compatible mount or CAT QD device fits it best.
Pick titanium if weight is the priority and you shoot at a measured pace. Go with Inconel 718 if you plan to run it hard, want shorter barrels on 5.56 or 7.62 NATO, or just don't want to deal with titanium sparking. If .308 is your main caliber rather than 7.62x39, take a look at the CAT JL before you decide.
FEATURES
- Length: 6.85" (HUB), 7.20" (QD)
- Weight: Titanium 9.9 oz (HUB), 10.8 oz (QD); Inconel 718 18.2 oz (HUB), 19.7 oz (QD)
- Mount: HUB (1.375x24) or 1x16LH QD
- Caliber rating: 7.62x39, 5.56 NATO, and .300 BLK, up to 7.62 NATO
- Color: Black
- Material: Titanium or Inconel 718
- Finish: DLC
- Diameter: 1.60"
- CAT Surge Bypass technology
- Optimized for 1,100 to 2,600 ft/s
- Optimized platform: 16" AK-47
- Recommended by CAT for semi-auto use
- Inconel 718 versions are duty focused and able to support full auto or high rates of fire (HRF)
- Waffle-style sacrificial erosion interface at the end of the blast chamber
- QD versions ship with a Spooky 1 flash hider
- Model: CAT/ODB
WHAT'S INCLUDED
- CAT ODB suppressor
- Sticker pack
- Spooky 1 flash hider (QD versions only)
COMPATIBILITY
- Compatible Mounts (HUB Versions): Any HUB-compatible mount, CAT TSFX QD mount (sold separately)
- Compatible Muzzle Devices (QD Versions): CAT 1x16LH QD muzzle devices, Noveske Pig Pen
- QD Muzzle Device Note: Due to the blast baffle depth, we recommend only using compact muzzle devices on QD mounting solutions. Some full-size muzzle devices may not be compatible.
MEDIA
BARREL RESTRICTIONS
- 5.5" : .300 BLK subsonic (Titanium), .300 BLK (Inconel 718)
- 8" : 5.56 NATO (Inconel 718)
- 10" : Titanium, general minimum (caliber not specified by CAT)
- 12" : 7.62 NATO (Inconel 718)
- 16" : 7.62 NATO (Titanium)
- 7.62x39: No caliber-specific minimum listed by CAT
SOUND PERFORMANCE
- 5.56 NATO: Composite Suppression Rating 36.7, 10.3" MK18, Federal XM193 55gr, Inconel 718 model (PEW Science)
- .300 BLK: Composite Suppression Rating 67.2, 8" Q mini FIX, Discreet Ballistics 190gr subsonic, Inconel 718 model (PEW Science)
AVAILABLE MODELS
- Mount: HUB, QD
- Material: Titanium, Inconel 718
| Weight | 9.9oz |
|---|---|
| Manufacturer | CAT |
| Caliber | 7.62mm |
| Length | 6.85 (HUB) / 7.20 (QD) |
| Diameter | 1.6" |
| Decibel Reduction / Output | Not Provided |
| Full Auto Rated | No |
| Thread Pitch | Multiple Thread Pitchs Available |
| Color | Black |
| Finish | DLC |
| Materials | Titanium or Inconel (version dependent) |
| Can Be Disassembled | No |
| Warranty | https://specterscat.com/product/cat-odb/ |
