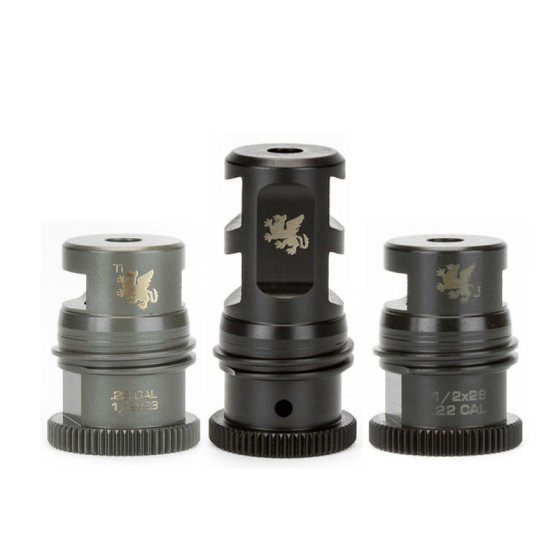

Griffin Dual-Lok Muzzle Brakes
The Dual-Lok muzzle brakes integrate 60 machined mounting position grooves, which is doubled by the mount’s two locking positions, hence the double entendre DUAL-LOK. How is this achieved? The mount's two locking positions are machined out of phase of one another by 3 degrees which provides the 120 effective locking positions and ensures a tightly mounted and locked suppressor. When the suppressor is installed, only one of the two positions will generally function by allowing the spring to push the locking collar rearward over the splines.
Constructed of 17-4 PH stainless steel, the DUAL-LOK™ Minimalist Brake has a wear resistant baffle that increases suppressor service life. Additionally the brake features compensating ports that help reduce muzzle climb while assisting in reducing felt recoil. The Minimalist Brake weighs 2.6 ounces and is less than an 1.5" long, adding minimal weight and length compared to that of most competing suppressor mounts. The lighter weight reduces suppressor system weight while making the host firearm barrel lighter and more responsive to the shooter.
The DUAL-LOK™ Paladin Brake is a compact 2-Port Taper Mount muzzle device that is compatible with all of our DUAL-LOK™ Hub Mount, as well as our DUAL-LOK™ dedicated suppressors (not compatible with the DUAL-LOK™ PSR suppressor line). Geometrically designed to keep weight to a minimum, the Paladin Brake offers full size performance without the weight penalty.
Each brake comes with a shim set for timing.
- 3/4 wrench flats
- 17-4 Stainless construction
- Nitrided for corrosion resistance
- Shim set included
- Taper interface ensures accuracy
